Stonex R180 Robotic Total Station
Stonex R180 Robotic Total Station shown with a gps and pole for functionality
Stonex R180 Robotic Total Station Trailer Video

R180 1" Stonex Robotic Total Station

$30,000.00

The Stonex R180 1" Robotic Total Station is a high precision robotic total station built for surveyors, construction layout crews, engineers, and geospatial professionals who need fast, accurate, and efficient one person operation in the field....

Login to use WishlistCompare
Vendor: Stonex
Availability : In Stock Pre order Out of stock
Ask a Question

visadiscoverpaypalamerican expressmasterapple paygoogle payshopify pay
Order in the next [totalHours] hours %M minutes to get it between and
Description

The Stonex R180 1" Robotic Total Station is a high precision robotic total station built for surveyors, construction layout crews, engineers, and geospatial professionals who need fast, accurate, and efficient one person operation in the field. Designed with Android onboard software and a responsive touchscreen interface, the R180 gives crews a modern robotic workflow for layout, stakeout, topographic surveys, monitoring, and construction measurement.

The R180 is engineered for speed and precision, featuring a fast 180°/sec rotation speed, 1" angular accuracy, and EDM accuracy of 1 mm + 1 ppm with prism measurements. It also offers up to 1000 m reflectorless range and up to 6000 m range with a prism, making it a strong choice for demanding field applications where both long range measurement and robotic tracking performance matter.

With Android operating software, dual 6" color touch displays, automatic prism search, integrated camera, guide light, wireless connectivity, and a durable IP65 rated design, the Stonex R180 robotic total station is built to help survey crews work faster while maintaining reliable measurement accuracy. It is a professional solution for crews upgrading from a manual total station or looking to improve productivity with robotic surveying equipment.

The Cube-a onboard software includes all the classic functions of the program, as well as the integration of jobs done with GNSS and surveys done with the total station. This allows operators to achieve complex and professional work in a short time and with high accuracy. Additionally, the R180 has a camera and a light guide to further facilitate field work.

  • 1" angular accuracy for high precision surveying and layout
  • Fast 180°/sec robotic rotation speed for efficient prism search and tracking
  • EDM accuracy of 1 mm + 1 ppm with prism measurements
  • Up to 1000 m reflectorless range and up to 6000 m prism range
  • Android operating system with Cube-a onboard software
  • Dual 6" color touchscreen displays for easy operation
  • Automatic prism centering and robotic tracking capabilities
  • Integrated camera, guide light, Bluetooth, Wi-Fi, USB, RS232, and 4G connectivity
  • IP65 rated for rugged field conditions
  • Ideal for land surveying, construction layout, stakeout, topographic work, and engineering applications
Additional Information

Brand: Stonex

Model: R180

Instrument Type: Robotic Total Station

Angular Accuracy: 1"

Reflectorless Range: Up to 1000 m

Prism Range: Up to 6000 m

EDM Accuracy: 1 mm + 1 ppm with prism measurements

Rotation Speed: 180°/sec

Display: Dual 6" color touchscreen displays

Operating System: Android with Cube-a onboard software

Connectivity: Bluetooth, Wi-Fi, USB, RS232, and 4G

Protection Rating: IP65

Common Uses: Surveying, construction layout, stakeout, topographic surveys, engineering, and field measurement

Why Buy Us?

Why Choose Us for Your Land Surveying Supplies and Equipment?

Expert Guidance, Every Step: Benefit from our team's expertise, ensuring you make the right choices for your surveying requirements.

Comprehensive Product Range: Explore a wide array of high-quality surveying supplies and equipment, all in one place.

Affordable Precision: Enjoy competitive pricing without compromising on the precision of your tools.

Exclusive Bundle Deals: Save more with our exclusive bundle deals, maximizing the value of your purchases.

Trusted Brands, Reliable Results: Choose from trusted brands, ensuring durability and accuracy in every product.

Dedicated Customer Support: Experience dedicated customer support for any questions or assistance you may need.

Swift and Secure Delivery: Count on fast and secure shipping, so you get your equipment when you need it.

User-Friendly Shopping: Navigate our user-friendly platform effortlessly, making your shopping experience hassle-free.

Satisfaction Guaranteed: We stand by our products and offer a satisfaction guarantee, ensuring your confidence in every purchase.

Reviews

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
STONEX
Why Choose The Stonex R180?

It's Engineered for Surveyors In Mind

Experience what Stonex has to offer with their brand new fully robotic total station. Crafted with Tdrive technology and built to last.
Angular Accuracy 1 "
Tracking Performance M
Reflectorless Range Up to 1,000 meters
Prism Range Up to 6,000 meters
Measurement Accuracy EDM accuracy of 1 mm + 1 ppm
Battery Runtime Up to 7 hours runtime
FEATURES
Why choose the stonex r180?

Premium Features That Set It Apart

The Stonex R180 is built to help survey crews work faster, stay locked on target, and handle demanding field tasks with confidence.

Feature icon

Reliable Prism Tracking

Designed to maintain lock on the prism as you move, helping crews work more smoothly with fewer delays in the field.

Feature icon

Faster One Person Workflows

Reduces the need for extra crew support by giving one operator the robotic performance needed to keep jobs moving.

Feature icon

Precision You Can Build On

High accuracy performance for layout, staking, topo, and construction applications where dependable results matter.

TRACKING

Tracking Performance That Keeps You Moving

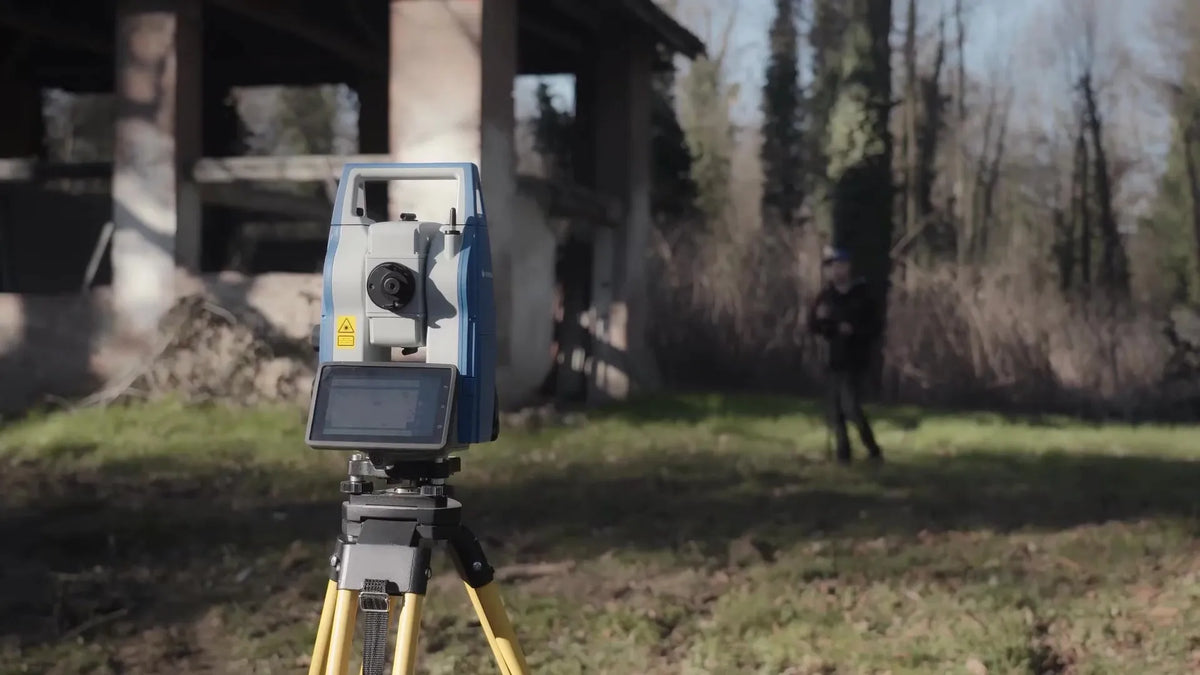

Stonex R180 locked onto a prism pole as a land surveyor is walking with a prism pole on a jobsite.

The Stonex R180 is designed to lock onto the prism, follow the operator, and support a smoother robotic workflow in the field. For layout, staking, and topo work, reliable tracking helps reduce interruptions and keeps one person crews productive

See All R180 Features
R180 ROBOTIC FEATURES

Precision Engineering for Real Fieldwork

Built for survey crews that need dependable tracking, accurate measurements, and a smoother robotic workflow across layout, staking, topo, and construction jobsites.
ROBOTIC

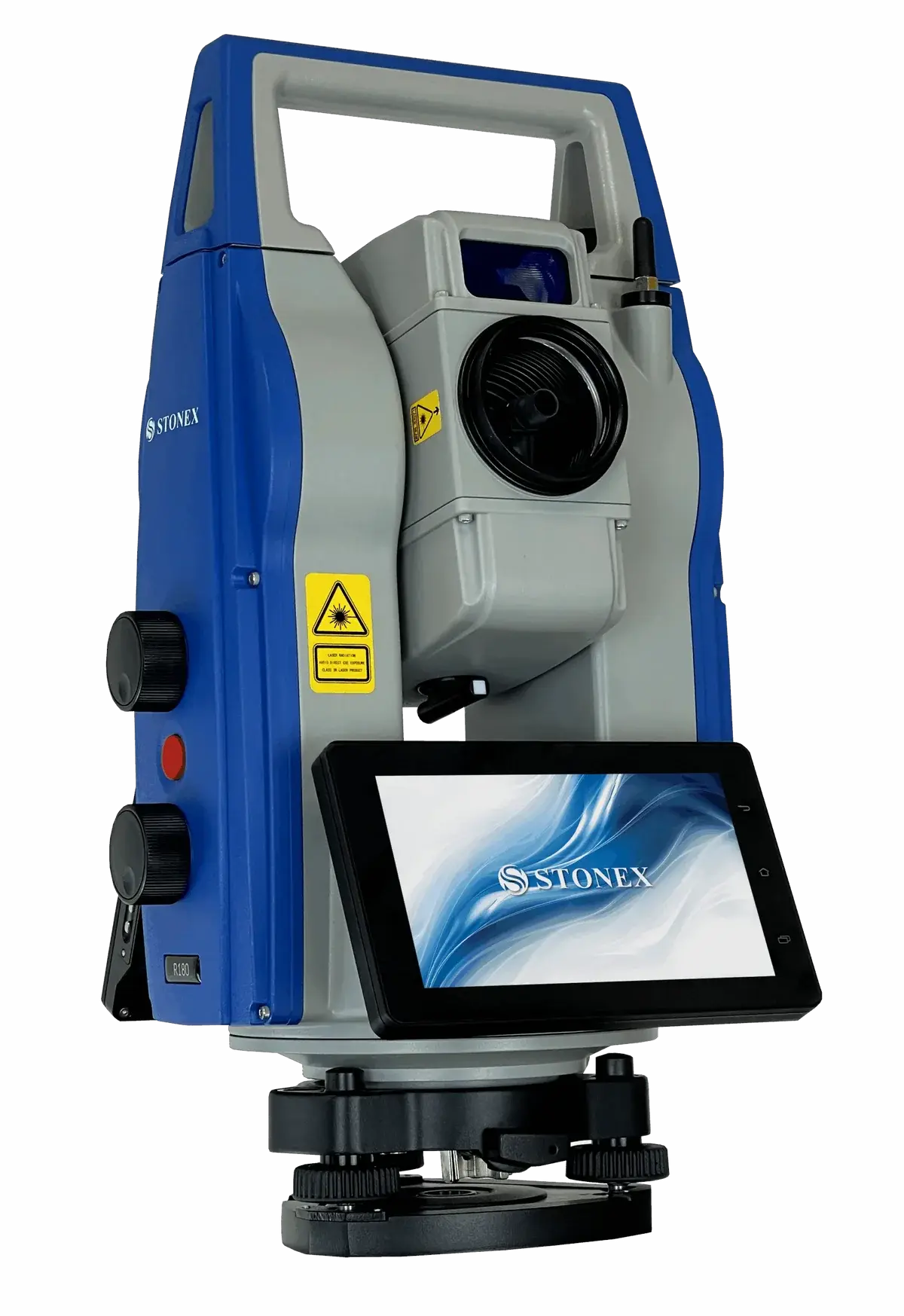

Stonex R180 Total Station Cutout Image Detailed Product Display

Fast, Silent Tdrive Motor

The R180 uses high speed Tdrive motor technology for smooth robotic movement, fast target pursuit, and quieter operation in the field. With fewer friction based components than traditional gear driven systems, it is built for durability, speed, and reduced maintenance.

Built In Camera for Better Targeting

The integrated camera helps operators view surveyed points on the screen and use live imagery to support aiming, point confirmation, and field collimation. It adds a more visual workflow for crews working through complex layout and measurement tasks.

FAST360 Prism Search

FAST360 technology helps the R180 locate the prism quickly from any direction, while Automatic Center Prism support helps center the target with less manual effort. This is especially useful when crews need faster setup, target recovery, and efficient robotic operation.

Touchscreen Field Control

Control key field functions directly from the R180 using its onboard Android system, Cube-a software, and 6 inch touch screens. It gives crews a more convenient way to manage measurements, targeting, and field operations from the instrument.

FAQs About R180 1" Stonex Robotic Total Station

Why Choose the Stonex R180 1" Robotic Total Station?

The Stonex R180 1" Robotic Total Station is a strong choice for surveyors, contractors, and layout professionals who want robotic total station performance without paying the premium price often associated with the biggest-name brands. It is one of the more affordable fully robotic total stations available, while still offering the speed, accuracy, and automation needed for demanding field work. With 1" angular accuracy, fast robotic rotation, Android operation, onboard software, and reliable prism tracking, the R180 gives crews a professional robotic solution at a price point that makes upgrading more realistic.

What accuracy does the Stonex R180 1" offer?

The Stonex R180 1" model offers 1-second angular accuracy, making it suitable for precise surveying, construction layout, stakeout, and measurement tasks. The instrument is also listed with EDM accuracy of 1 mm + 1 ppm for prism measurements.

Is the Stonex R180 a fully robotic total station?

Yes. The Stonex R180 is a fully robotic total station designed for automated prism search, lock, and tracking workflows. Its fast and silent T-Drive motor allows smooth robotic movement, helping the instrument quickly rotate, follow the prism, and support efficient one-person field operation. Combined with automatic prism centering and tracking features, the R180 is built to improve productivity on surveying, stakeout, and construction layout jobs.

Does the Stonex R180 have touchscreens?

Yes. The Stonex R180 is listed with dual 6-inch color touchscreen displays, making it easier to operate from either face of the instrument.

What jobs is the Stonex R180 1" best suited for?

The R180 1" is well suited for surveying, construction layout, stakeout, topographic work, site measurements, and robotic one-person field workflows. Its combination of 1" accuracy, robotic tracking, long-range measurement, and Android onboard software makes it a practical tool for many professional field applications.

Is the Stonex R180 good for one-person surveying?

Yes. The Stonex R180 1" Robotic Total Station is a strong option for one-person surveying because it is designed to automatically search for, lock onto, and track the prism as the operator moves around the jobsite. Instead of needing one person behind the instrument and another person holding the rod, a single surveyor can operate the system from the field controller at the prism pole.

For new surveyors, this can be a major efficiency boost. A robotic total station like the R180 can help reduce walking back and forth to the instrument, speed up stakeout work, and make layout or topo collection more streamlined. Once the instrument is set up and connected to the controller, the operator can take measurements, stake points, check elevations, and collect data from the rod position.

The R180’s robotic tracking, automatic prism search, and fast motorized movement help keep the instrument locked onto the prism during normal field workflows. When paired with the right prism, controller, and survey software, it can help newer crews take on more work with fewer people in the field while still maintaining professional accuracy.

For surveyors looking to maximize productivity without stepping into the highest price range of robotic systems, the Stonex R180 offers a practical balance of automation, accuracy, and value. It gives new and growing survey teams the ability to work more independently, complete jobs faster, and build efficient field habits around modern robotic workflows.
